Automatic Powder Forming Ceramic Press Machine / Hydraulic Tablet Press for Industrial Ceramic Product
Main Features of Ceramic Press Machine:
- Our ceramic press machine is made of stainless steel, which conform with GMP standard. And it is easy to get the light demolition, internal cleaning convenience purposes.
- Adopted PLC programming controller realizing bi-directional repression and Imported hydraulic components.
- All of the operations can be adjusted through the PLC to the best state. Therefore, it is quite easy to operate and can work stably, safely and accurately.
- The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside, pollution-free, easy release the heat and the control panel can be design to demonstrate in different foreign languages.
Descriptions and Advantage of Ceramic Press Machine:
| Fully CNC Control Design: | Each action can be set separately. Special material tablet forming can be solved by precise control and flexible technology. |
| Fully Intelligent Operation Design: | Production debugging is operated through PLC touch screen, which can cut the cumbersome process in great scope and make the operation more easily. |
| Fully-automatic Material Filling Design: | The filling method and dosage can be intelligently controlled,rapidly and stably, which can save much time and labor. |
| Isolated Hydraulic Station Design: | Oil cylinder working area and mechanical working area are Mutual independence, preventing oil pollution. |
Technology and Advantage of Ceramic Press Machine:
| Demoulding Protection: | Protecting the compressed tablet well,which are damaged by improper mould forces in the course of production. |
| Uniform Density: | Uniform density of the compressed tablet can be ensured through special technology. |
| Different layer different color: | Can compress the tablet with different layers and different colors. |
| Multiple Production Capacity: | Production capacity can be raised many times under certain conditions. |
| Safety Protection: | If some abnormal condition occurs,it will stop immediately and minimize its negative effects. |
Technical Parameters of Ceramic Press Machine:
| Production Capacity | 5-7 molds/min(the actual speed according to product process requirement) |
| Working Pressure | ≤45T(1. step-less adjustment 2. can be bidirectional compress) |
| Working Stroke | Up stroke≤150mm,down strokes≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Filling Depth | ≤150mm(1. step-less adjustment 2. Customized based on customer’s request. ) |
| Product Mould | Customized according to the tablet features(Multi-cavity Mould) |
| Apply to Shape | Round, square, or special-shaped(suitable for a variety of shapes) |
| Motor Power | 7. 5kw; 9 kw(Servo) |
| Weight&Size | Approximately:2000kg 2200mm*950mm*2050mm(L*W*H) |

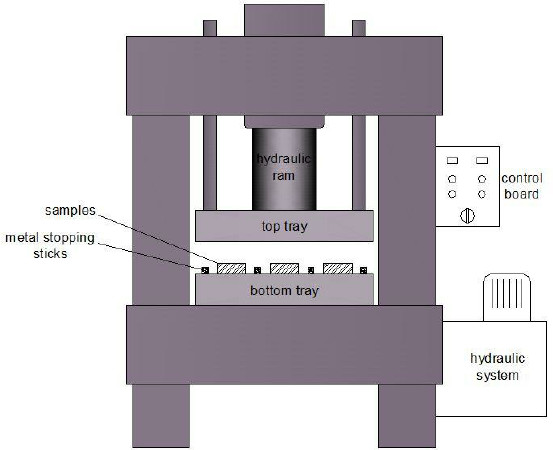

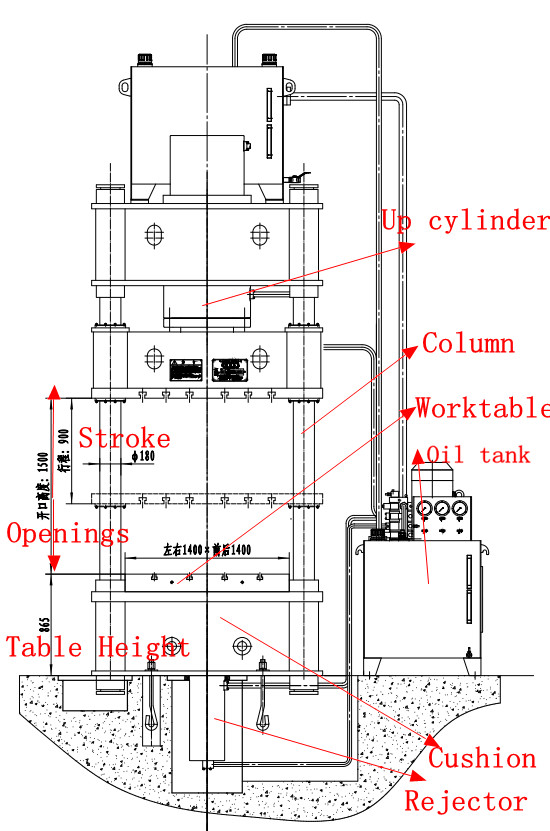

Reasonable Structure Design of Ceramic Press Machine:
- energy saving and environmental protection
- small space occupation
- superior performance
- simple operation
- easy maintenance and so on.

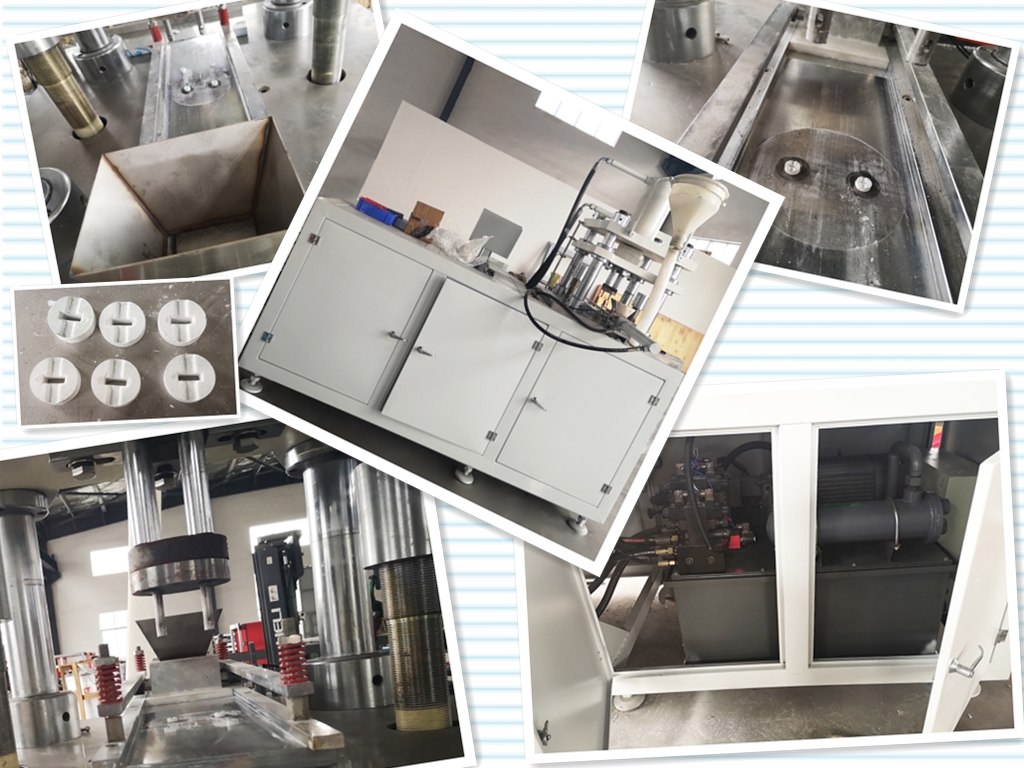

Detailed Parts of Ceramic Press Machine::
Applications of Ceramic Press Machine:
| Agriculture: | Feed block, fertilizer tablets, animal food, animal salt lick |
| Electronics Batteries: | Thermistor, integrated circuit components, carboniferous brush films... |
| Health Products: | calcium, propolis tablets, effervescent tablets, bath salts tablets... |
| Chemical: | disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials... |
Quality Assurance Service of Ceramic Press Machine:
· We support SAMPLE making and testing with your raw material.
· Every set of machine would be strictly inspected before shipment to ensure the quality.
· TEST RUNNING with material could be supported according to your inquiry.
· There would be quality certificate along with machine.
· Easily Wear and tear parts would be shipped with machine.
· Real-time checking on line for machine manufacturing would be supplied if you like.
· Spot checking would be welcome if you like to visit our factory, and the whole journey would be arranged well for you.
Packing and Shipping of Ceramic Press Machine:
What we can do for you before order?
Please share below details then we will recommend machine for you:
1. The product you will make
2. Your product's size and shape
3. Your roduct' weight
4. Capacity per hour you want
Also we can design, customize the die and machine for you!!!
